NEW 12 Volt Ignition Coil & Cap Honda CB350 CB350K CL350K CL350 SL350K w/ Boot

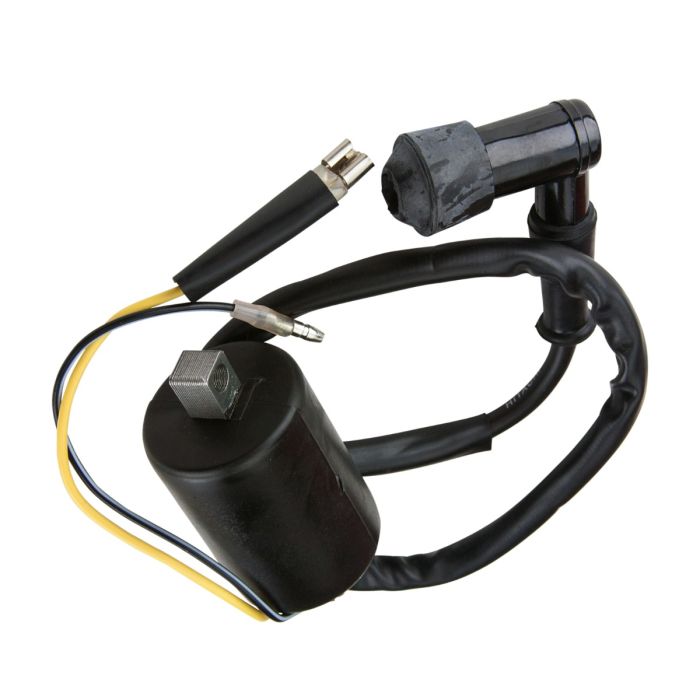

Venom Brand reproduction Honda 12 volt ignition coil with 90° spark plug cap, fits motors with points or converted electronic ignition systems.

NOTE: This ad is for ONE (1) coil (Fits right or left).

Replaces the following Honda Part Numbers:

• 30500-292-672
• 30500-292-371
• 30500-312-007
• 30500-310-670
• 30500-286-007
• 30500-286-004
• 30510-369-004
• 30520-369-003

The approximate dimensions are as follows:

• Spark plug wire length from base of coil to the end of the cap 490mm (19.25")
• 90 degree spark plug boot installed as pictured
• Black wire w/ white stripe 180mm (7.1") with male bullet connector
• Yellow 185mm (7.25") with dual female bullet connector
• 80.5mm (3.17") from center to center of the mounting holes

NOTE: Some applications may have a very tight fit, some also may need a small spacer or washers to acheive proper clearance for the left side. (mounting hardware not included) In some rare cases, a mounting bracket may need to be adjusted or fabricated)

Please ensure your model and year is listed below for proper fitment.
This part will ONLY work on the vintage twin cylinder models and years listed below:
