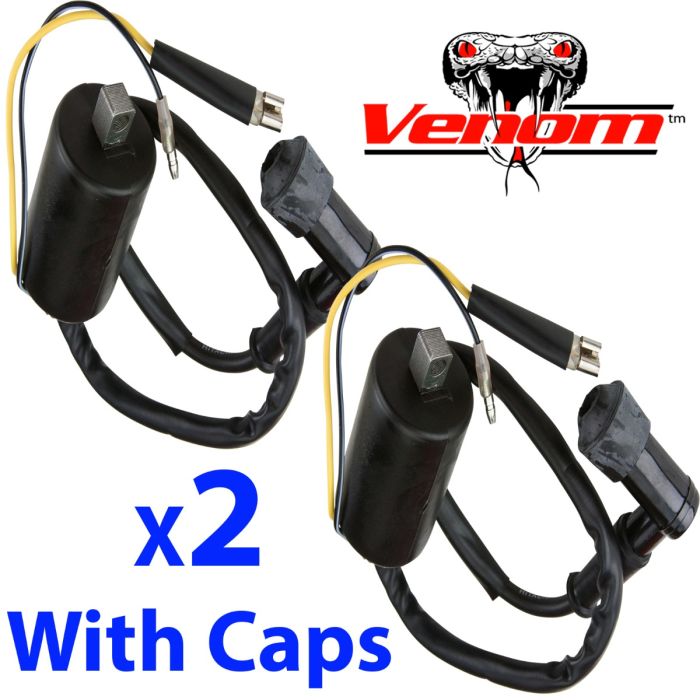

Set of 2 Venom Brand reproduction Honda 12 volt ignition coils with 90° spark plug caps, fits motors with points or converted electronic ignition systems.
NOTE: This ad is for TWO (2) coils (right & left).
Replaces the following Honda Part Numbers:
30500-292-672
30500-292-371
30500-312-007
30500-310-670
30500-286-007
30500-286-004
30510-369-004
30520-369-003
The approximate dimensions are as follows:
Spark plug wire length from base of coil to the end of the cap 490mm (19.25")
90 degree spark plug boot installed as pictured
Black wire w/ white stripe 180mm (7.1") with male bullet connector
Yellow 185mm (7.25") with dual female bullet connector
80.5mm (3.17") from center to center of the mounting holes
NOTE: Some applications may have a very tight fit, some also may need a small spacer or washers to acheive proper clearance for the left side. (mounting hardware not included) In some rare cases, a mounting bracket may need to be adjusted or fabricated)
Please ensure your model and year is listed below for proper fitment. This part will ONLY work on the vintage twin cylinder models and years listed below:
Years
Models
1968-1973
CB350K
1973
CB350G
1974
CB360G
1975-1976
CB360T
1968-1974
CB450K Super Sport
1976-1977
CJ360T
1968-1973
CL350K Scrambler
1974-1975
CL360K Scrambler
1968-1973
CL450K Scrambler
1969-1973
SL350K Motosport
